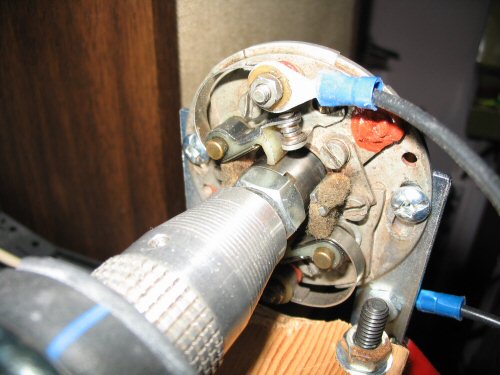

| Lucas Contact Breaker |

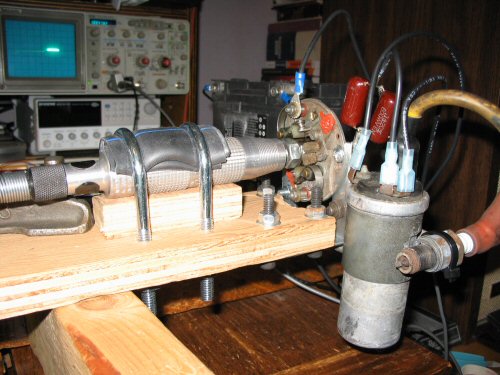

) Lucas Contact Breaker T120 |
) Lucas Contact Breaker T120 |

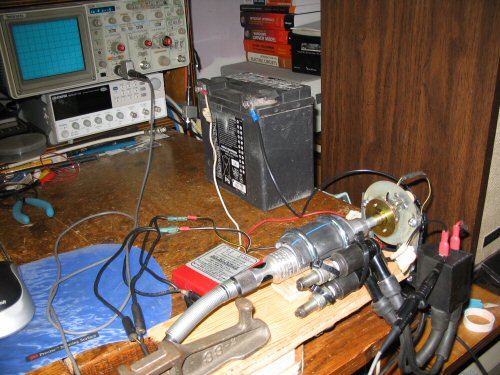

) Boyer Micro-Power |

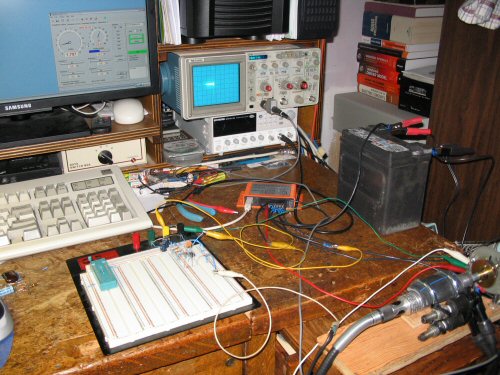

) Proto IMF-Boyer-Garp |
| Lucas Contact Breaker |
|
Lucas Contact Breaker T120 |
Lucas Contact Breaker T120 |
|
Boyer Micro-Power |
Proto IMF-Boyer-Garp |
| Type | Pulse width (ms) | Pulse period (ms) | Duty-Cycle | Pulse (Vdc) | Coil Type (ohm) | Tension (volts) | 0 rpm (mA) | 1000 rpm (mA) | 4000 rpm (mA) | Puissance (watts) | Scope Coil |
| ASP2006 | 9.000 | 52.000 | 17.308% | -140 | Lucas 17M12 (4.0) x 2 | 12 | 2000 | 700 | 400 | 4.80 | ASP2006 |
| ASP2010 | 10.000 | 56.000 | 17.857% | -130 | Lucas 17M12 (4.0) x 2 | 12 | 2200 | 800 | 400 | 4.80 | ASP2010 |
| Boyer Micro-Power | 10.000 | 50.000 | 20.000% | 400 | PVL Dual (0.6) x 1 | 12 | 40 | 750 | 950 | 11.40 | Boyer Micro-Power |
| IMF Direct Ignition CDI | 0.010 | 60.000 | 0.017% | ±200 | PVL Dual (0.6) x 1 | 12 | 80 | 160 | 400 | 4.80 | IMF Direct Ignition CDI |
| Lucas Contact Breaker | 30.000 | 70.000 | 42.857% | -200 | Lucas 17M12 (4.0) x 2 | 12 | 2800 | 2200 | 1500 | 18.00 | Lucas Contact Breaker |
| Lucas Rita AB11 | 0.005 | 60.000 | 0.008% | 375 | Lucas 17M6 (2.0) x 2 | 12 | 2840 | 2350 | 2300 | 27.60 | Lucas Rita AB11 |
| Pazon Smart-Fire PD2TTP | 0.015 | 65.000 | 0.023% | 150 | PVL Dual (0.6) x 2 | 14 | 50 | 350 | 1050 | 14.70 | Pazon Smart-Fire PD2TTP |
| Pazon Sure-Fire PA2 | 10.000 | 50.000 | 20.000% | 400 | Andrew Dual (3.5) | 12 | 30 | 1700 | 1100 | 13.20 | Pazon Sure-Fire PA2 |
